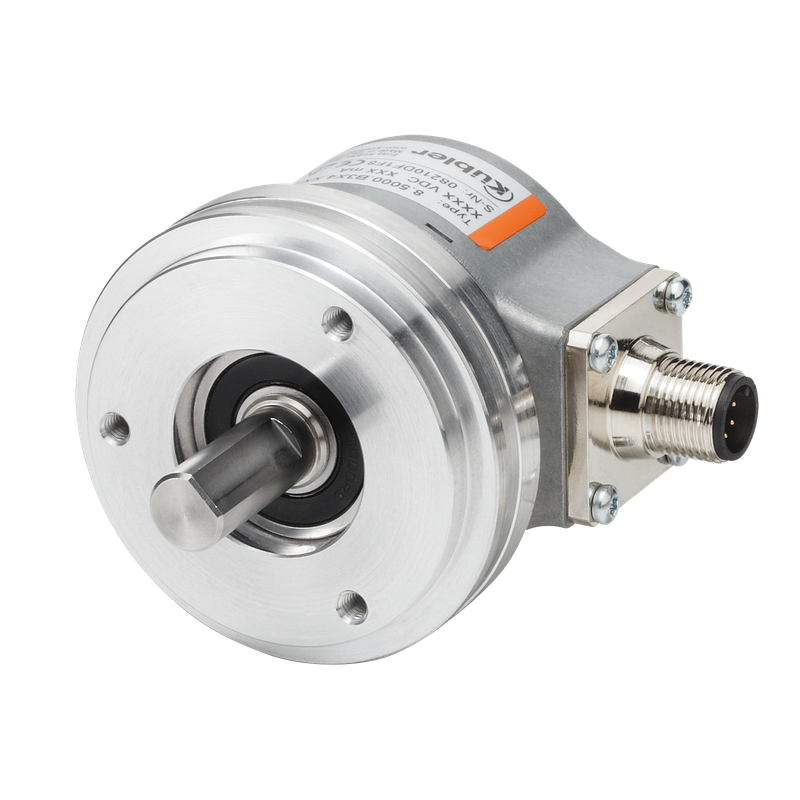

Kübler KIS50
Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.
- Economical
- Ideal for simple machines
- Robust bearing structure
- Dimension Ø 58 mm
- 5.000 ppr incremental
- Max 12 mm shaft, with flat surface
KIS50 order codes we supply (117)
Description
Kuebler The economical sensor solution. The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.
Technical Specifications
Mechanical
| Dimension | Ø 58 mm |
| Shaft type | 6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 12 mm shaft, with flat surface |
| Flange type | Synchro flange / Servo flange Clamping flange Square flange Euro flange |
| Connection types | Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial |
| Max. rotational speed | 6.000 min-1 |
Electrical
| Working temperature | -20 °C ... +70 °C |
| Power supply | 5 V DC 5...30 V DC 10...30 V DC |
| Interfaces | Gegentakt TTL / RS422 Open Collector |
Applications
- Speed and position feedback on simple machines and conveyors
- Length measurement on cut-to-length and slitting lines
- Motor speed feedback on textile and printing machines
- Cost-sensitive OEM machines needing up to 5000 ppr
- Counting and positioning on packaging machinery
