M3678
Kübler

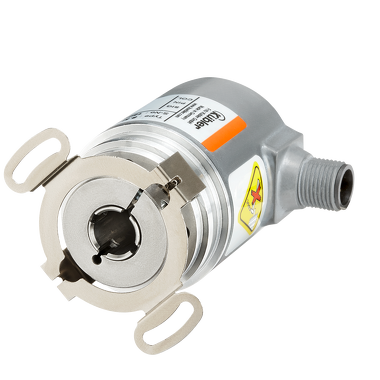

Kübler M3678

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • High precision
  • Particularly resistant
  • Wear-free
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • Max 10 mm hollow shaft, blind hole
  • Max 1/4" hollow shaft, blind holerticularly resistant
  • Without gear with 100% magnetic insensitivity
  • Dimension Ø 36 mm
  • 16 bits singleturn
  • Max 10 mm hollow shaft, blind hole
  • Max 1/4" hollow shaft, blind hole
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Encoder with IO-Link Interface – Ready for Industry 4.0 / IIoT. The Sendix M36 is a magnetic singleturn encoder in a compact design. It impresses with robustness, reliability and cost efficiency. With Smart Sensor Profile for easy and fast integration into the application.

Technical Specifications

Mechanical

DimensionØ 36 mm
Shaft type6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole
Working temperature-40 °C ... +85 °C
Flange typeSpring element, long Stator coupling Ø 36.00 mm
Connection typesM12 connector axial M12 connector radial
Max. rotational speed6.000 min-1
Protection categoryIP65 IP67

Electrical

Power supply18...30 V DC
InterfacesIO-Link

Applications

  • IO-Link position feedback on Industry 4.0 machines
  • Wear-free angle sensing on packaging and handling axes
  • Compact position feedback on small actuators
  • Rugged magnetic encoders in dusty or wet environments
