M5863
Kübler

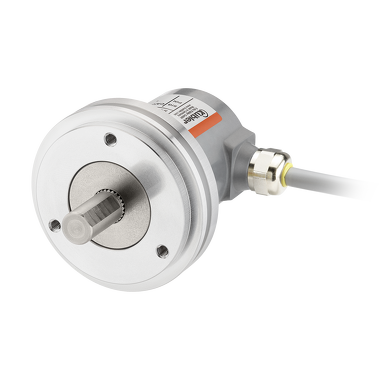

Kübler M5863

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • With 58 mm flange
  • Particularly resistant
  • Magnetic – robust
  • Dimension Ø 58 mm
  • 14 bits singleturn
  • 24 bits multiturn
  • Max 10 mm shaft, with flat surface
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Energy Harvesting Technology: Electronic multiturn encoders. The Sendix M5863 absolute encoder with Energy Harvesting Technology and SSI interface is an electronic multiturn encoder without gears and without battery - in standard format with 58 mm flange. Due to its high robustness and high resolution, it is ideally suited for use in demanding applications.

Technical Specifications

Mechanical

DimensionØ 58 mm
Shaft type6 mm shaft, with flat surface 10 mm shaft, with flat surface
Working temperature-40 °C ... +85 °C
Flange typeSynchro flange / Servo flange Clamping flange Ø 58.00 mm
Connection typesRadial cable M12 connector radial
Max. rotational speed4.000 min-1
Protection categoryIP65

Electrical

Power supply10...30 V DC
InterfacesSSI, binär SSI, gray
Resolution max.14 bits singleturn 24 bits multiturn

Applications

  • SSI multiturn position without battery or gears
  • Absolute position on cranes and material handling
  • Rugged feedback on steel and heavy industry equipment
  • Car and hook position measurement on lifts and hoists
