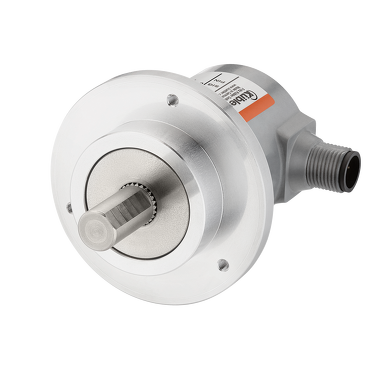

M5868

With 58 mm flange
Particularly resistant
Magnetic – robust
Dimension Ø 58 mm
14 bits singleturn
29 bits multiturn
Max 10 mm shaft, with flat surface

Description

Energy Harvesting Technology: Electronic multiturn encoders. The Sendix M58 with Energy Harvesting Technology is an electronic multiturn encoder without gear and without battery – in the standard format with 58 mm flange. High robustness and high resolution make this encoder the ideal device for use in demanding applications.

Technical Specifications

Mechanical

Dimension	Ø 58 mm
Shaft type	6 mm shaft, with flat surface 10 mm shaft, with flat surface
Working temperature	-40 °C ... +85 °C
Flange type	Synchro flange / Servo flange Clamping flange Ø 58.00 mm
Connection types	Radial cable M12 connector radial
Max. rotational speed	4.000 min-1

Electrical

Power supply	10...30 V DC
Interfaces	CANopen
Resolution max.	14 bits singleturn 29 bits multiturn
