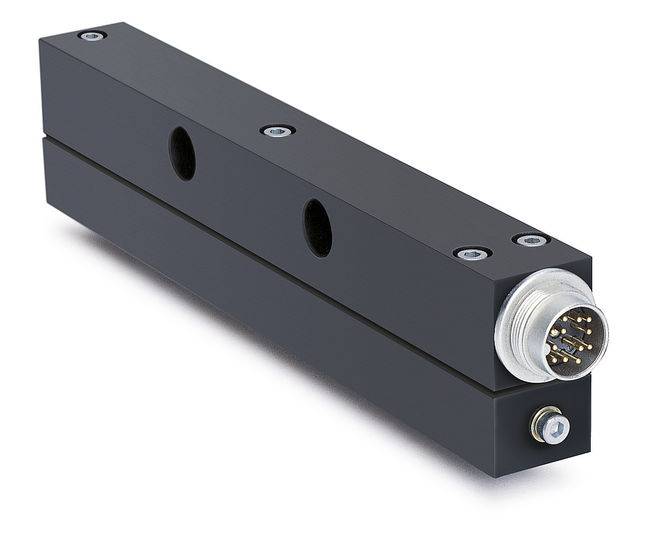

SIKO MSA511-XXXX
Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.
- Max. resolution 10 μm
- Repeat accuracy 0.01 mm
- SSI, RS485 output circuits
- Reading distance ≤2 mm Max. measuring length 20480 mm
Description
Siko Absolute Magnetic sensor: With SSI interface and 10 μm resolution
Technical Specifications
Mechanical
| Material Property | mechanical data | aluminum natural chromated |
| Connection types |
|
| Protection category | IP 65 |
Electrical
| Supply Voltage | 24 V DC |
| Current consumption | <100 mA |
| Resolution | 10 µm |
Applications
- Absolute linear position over long travels up to 20480 mm
- Gantry and portal axis feedback in material handling
- Long-stroke positioning on panel saws and cutting tables
- SSI or RS485 feedback without reference runs after power loss
