MSK1000
SIKO

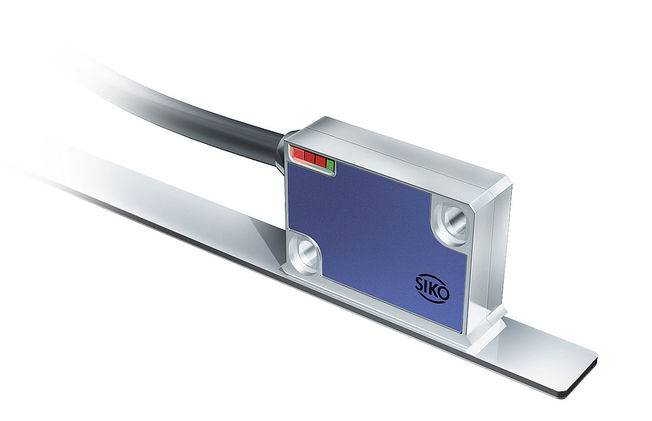

SIKO MSK1000

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Max. resolution 0.2 μm
  • Repeat accuracy ±1 μm
  • Status LED display
  • Reading distance ≤0.4 mm
  • Robust metal housing
Not sure this is the right model? Read the linear position measurement selection guide →

Description

Siko Incremental Magnetic sensor: With digital interface and 0.2 μm resolution

Technical Specifications

Mechanical

Material Property | mechanical datazinc die-cast / aluminum Housing
Connection typesopen cable end plug connector 7/8-pole D-Sub 9-pole
Protection categoryIP 67

Electrical

Supply Voltage6.5 … 30 V DC reverse polarity protected 4.75 … 6 V DC no reverse polarity protection
Current consumption<25 mA
Resolution
  • 0.2
  • 1
  • 2
  • 5 µm resolution

Applications

  • Sub-micron linear position feedback on precision machine axes
  • Grinding and machine tool slide positioning
  • Axis feedback on precision measuring and inspection equipment
  • Linear motor feedback on semiconductor and electronics machines
  • Rugged metal housing where glass scales are vulnerable
