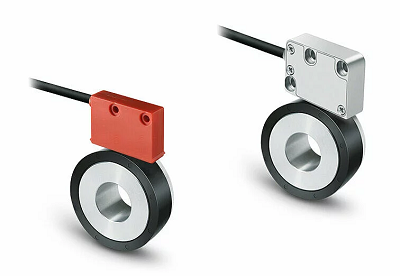

MSK320
SIKO

SIKO MSK320

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Max. resolution 12.5 μm max. resolution 0.006° with MR320 or MBR320 (250 poles)
  • Repeat accuracy ±0.04 mm Repeat accuracy of ±1 increment
  • Works with MB320/1 magnetic tape, MRI01 or MR320 magnetic ring, MBR320 magnetic tape ring
  • Reading distance ≤2 mm Max. 16000 pulses/revolution in combination with MR320 or MBR320 (250 poles)
  • Optionally with reference point R or flexible reference marks FR
Not sure this is the right model? Read the linear position measurement selection guide →

Description

Siko Incremental Magnetic sensor: With digital interface and 12.5 μm resolution

Technical Specifications

Mechanical

Material Property | mechanical data
  • red plastic
  • Steel
Connection typesopen cable end plug connector 7/8-pole D-Sub 9-pole
Protection categoryIP 67

Electrical

Supply Voltage
  • 24 V DC ±20 % (reverse polarity protected)
  • 5 V DC ±5 %( no reverse polarity protection)
Current consumption<20 mA, <75 mA
Resolution
  • Resolution : 0.04
  • 0.05
  • 0.08
  • 0.1
  • 0.16
  • 0.2
  • 0.8 mm

Applications

  • Linear position on woodworking and sawing machine stops
  • Rotary sensing with magnetic rings on shafts
  • Position feedback in dusty and chip-laden machining areas
  • Measuring travel of packaging machine axes
  • Replacing glass scales on general purpose machines
