MSK5000
SIKO

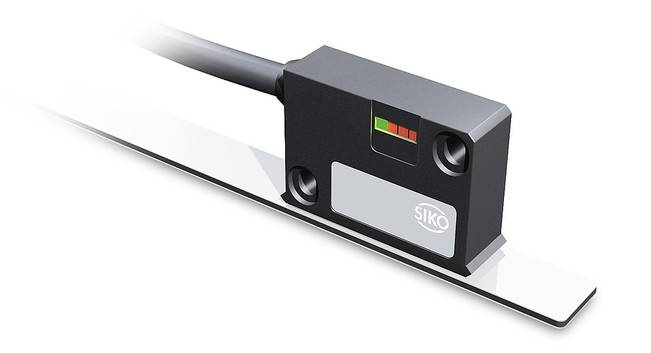

SIKO MSK5000

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Max. resolution 1 μm
  • Repeat accuracy ±0.01 mm Repeat accuracy of ±1 increment
  • Status LED display
  • Works with MB500/1 magnetic tape, MR500 magnetic ring, MBR500 magnetic tape ring
  • Reading distance ≤2 mm Max. 200000 pulses/revolution in combination with MR500 or MBR500 (160 poles)
  • Optionally with reference point R or flexible reference marks FR
Not sure this is the right model? Read the linear position measurement selection guide →

Description

Siko Incremental Magnetic sensor: With digital interface and 1 μm resolution

Technical Specifications

Mechanical

Material Property | mechanical datasynthetic material ABS black, zinc die-cast/aluminum, zinc die-cast
Connection typesopen cable end plug connector 7/8-pole D-Sub 9-pole
Protection categoryIP 67

Electrical

Supply Voltage
  • 6.5 … 30 V DC (reverse polarity protected)
  • 4.75 … 6 V DC (without reverse polarity protection)
Current consumption<25 mA, <75 mA
Resolution
  • 0.001
  • 0.005
  • 0.01
  • 0.025
  • 0.05
  • 0.1 mm

Applications

  • High-resolution linear feedback on machine tool slides
  • Rotary measurement with magnetic rings on shafts
  • Position feedback on measuring and testing equipment
  • Linear axis feedback on woodworking and panel machinery
  • Precision positioning on electronics assembly axes
