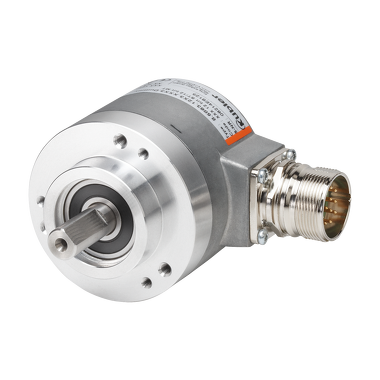

Multi-turn absolute encoder
Kübler

Kübler Multi-turn absolute encoder

Genuine Kübler product, supplied in India by Rajdeep Automation, the authorised Kübler distributor.

  • Number of revolutions up to 24 bit multiturn"
  • Additional incremental track for speed measurement
  • Optical and magnetic sensing
  • Sizes from Ø 36 mm to Ø 70 mm
  • Working temperature range from -40 °C to +90 °C
  • Analog, SSI, BiSS, fieldbus, Industrial Ethernet
Not sure this is the right model? Read the rotary encoders selection guide →

Description

Kuebler : Position detection over multiple turns with multiturn encoders. Various sizes. Variety of standard, fieldbus, and Industrial Ethernet interfaces. The right multiturn technology for any requirement.

Technical Specifications

Mechanical

DimensionØ 58 mm, Ø 36 mm
Shaft type6..8..10 mm hollow shaft, blind hole 6..10 mm shaft, with flat surface
Flange typeØ 36.00 mm , Ø 58.00 mm
Connection types
  • Tangential cable
  • M12 connector axial
  • Axial cable Radial cable M23 connector axial M23 connector radial M12 connector axial M12 connector radial.
Max. rotational speed
  • 12.000 min-1
  • 8.000 min-1
Protection level
  • IP65
  • IP67
Weight
  • 200 g
  • 450 g
Working temperature-40 °C ... +85 °C

Electrical

Power supply
  • 10...30 V DC
  • 5 V DC
Scanningoptical
Resolution max.
  • 16 bits singleturn
  • 16 bits multiturn
  • 2.048 ppr incremental
  • 17 bits singleturn
  • 24 bits multiturn.
Interfaces
  • CANopen
  • EtherNet/IP
  • SSI, gray SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS

Applications

  • Absolute position feedback across many turns on cranes and hoists
  • Axis positioning on CNC machine tools and special purpose machines
  • Retaining position after power loss on steel mill roll gap adjustment
  • Combined position and speed feedback via additional incremental track on drives
  • Fieldbus and Industrial Ethernet position feedback for packaging machine axes
  • Outdoor and cold-environment positioning on wind, port and mobile equipment
