Positioning drive AG05-Serialbus
SIKO

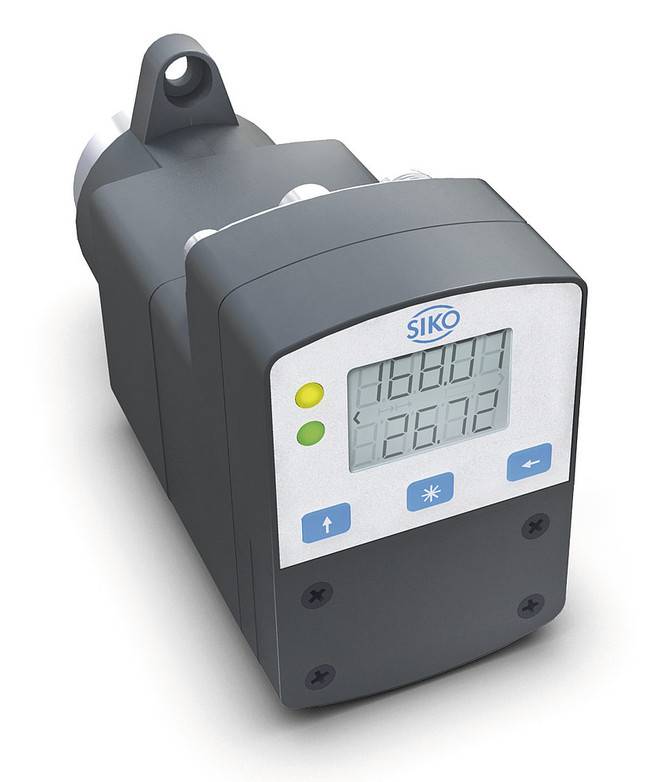

SIKO Positioning drive AG05-Serialbus

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Easy mounting
  • No additional coupling needed stainless steel 14 mm hollow shaft
  • Glass fiber reinforced casing
  • Brushless 24 VDC motor with long service life
  • Solid absolute sensor
  • Magnetic sensing technology 2-line LCD for target and position value and operating keys 2 LEDs for user guidance
  • Integrated RS485 or CANopen interface Integrated positioning controller M8 + M12 component mounting technology
  • Industry 4.0 ready

Siko actuator: Most compact positioning drive with Fieldbus ensures convenient handling with its integrated display and button operation

Technical Specifications

Mechanical

Material Property | mechanical dataglass-fiber reinforced plastic, stainless steel
Protection category
  • IP54
  • IP65

Electrical

Supply Voltage24 V DC ±10 %
Rated current2.2 A ±10 %, <60 mA ±10 %
Resolution720 increments/revolution shaft

Applications

  • Format adjustment on packaging machines with fieldbus control
  • Width and guide adjustment on labelling and filling lines
  • Auxiliary axis positioning on woodworking and profile machines
  • Repeatable spindle settings on printing and converting machines
  • Local adjustment and status reading via the integrated display
