S70/1
SIKO

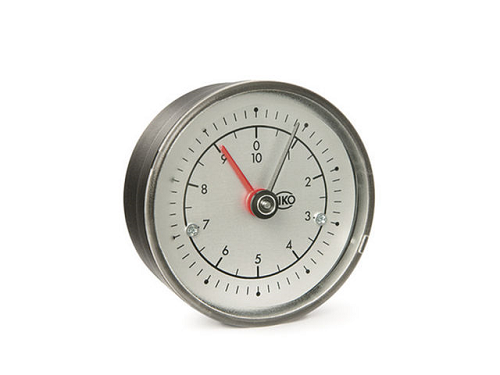

SIKO S70/1

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • analog position indicator
  • Measured value acquisition based on the gravity principle
  • High stability thanks to doubly supported pointer shaft
  • Very robust, glass-fiber reinforced plastic housing
  • Wide range of gear ratios
  • Special scales, also for small numbers of pieces
  • Dustproof, oil-filled or waterproof versions
Weight
  • 0.1 kg (N
  • W design)
Housingreinforced plastic
Weight0.1 kg
Housing Materialreinforced plastic
temperature range-10 °C to +60 °C
MATERIAL PROPERTIESZinc-coated steel or stainless steel
Not sure this is the right model? Read the position indicators selection guide →

Description

The SIKO S70/1 is a mechanical position indicator with a larger 6-digit counter display. It is mounted directly on a shaft and shows spindle rotation without requiring any electrical supply, ideal for manual format adjustments on industrial machines

Applications

  • Position indication for manual spindle adjustments
  • Format changeover settings on packaging machines
  • Setting display on printing and converting machines
  • Power-free position readout on woodworking machines
