S80/1
SIKO

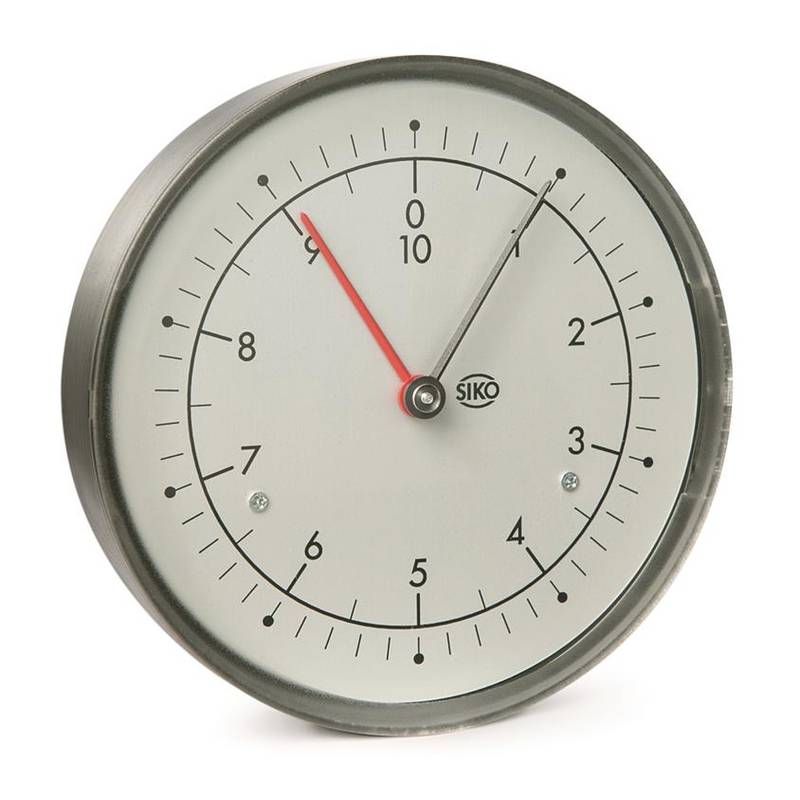

SIKO S80/1

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • analog position indicator
  • Measured value acquisition based on the gravity principle
  • High stability thanks to doubly supported pointer shaft
  • Very robust, glass-fiber reinforced plastic housing
  • Wide range of gear ratios
  • Special scales, also for small numbers of pieces
  • Dustproof, oil-filled or waterproof versions
Weight
  • 0.1 kg (N
  • W design)
Housingreinforced plastic
Weight
  • 0.1 kg
  • 0.2kg
Housing Materialreinforced plastic
temperature range-10 °C to +60 °C
MATERIAL PROPERTIESZinc-coated steel or stainless steel
Not sure this is the right model? Read the position indicators selection guide →

Description

The SIKO S80/1 is a mechanical position indicator that displays the rotational position of a shaft using a 6-digit counter. It functions without electrical power and is used for precise manual adjustment in industrial machines by directly mounting onto a rotating spindle or shaft.

Applications

  • Position display on manually adjusted machine axes
  • Format setting on bottling and packaging lines
  • Spindle position readout on woodworking and printing machines
  • Power-free indication of adjustment values on machine spindles
