SG10
SIKO

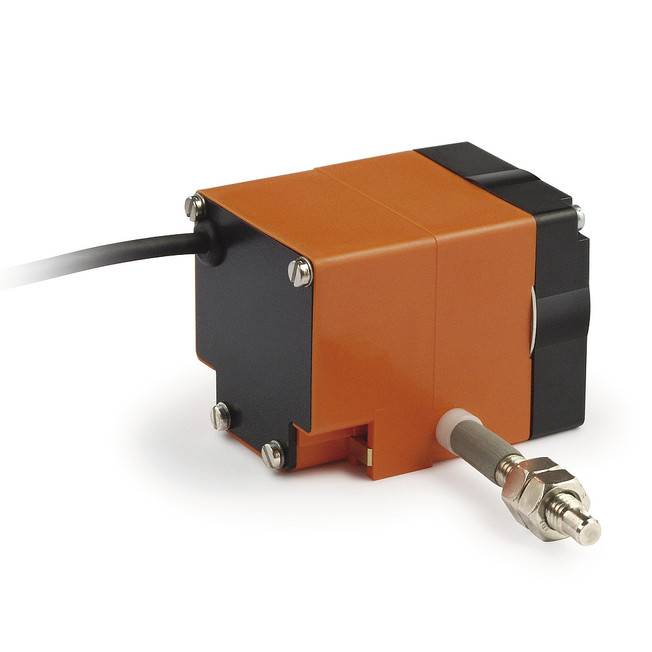

SIKO SG10

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Compact design
  • Universally applicable thanks to standardized interfaces
  • Easy mounting
  • Measurement lengths up to max. 2000 mm
  • Potentiometer, voltage, power output or incremental encoder
  • Housing made of reinforced plastic
Not sure this is the right model? Read the linear position measurement selection guide →

Description

Siko Draw-Wire Encoder: Small design Draw-Wire Encoder with 2000 mm measurement length

Technical Specifications

Mechanical

MATERIAL PROPERTIESreinforced plastic
Protection categoryIP50 (encoder part potentiometer) IP54 (incremental)
Mounting categoryExternal mounting
Measuring length from 0 to ... mm
  • 1000 mm
  • 2000 mm

Electrical

Working temperature-10 … 80 °C
Interfacespotentiometer, current output, voltage output, incremental

Applications

  • Linear position measurement up to 2000 mm on machine axes
  • Stroke measurement on cylinders and slides
  • Position feedback on test rigs and laboratory equipment
  • Low-cost length measurement on OEM machines
