SG30
SIKO

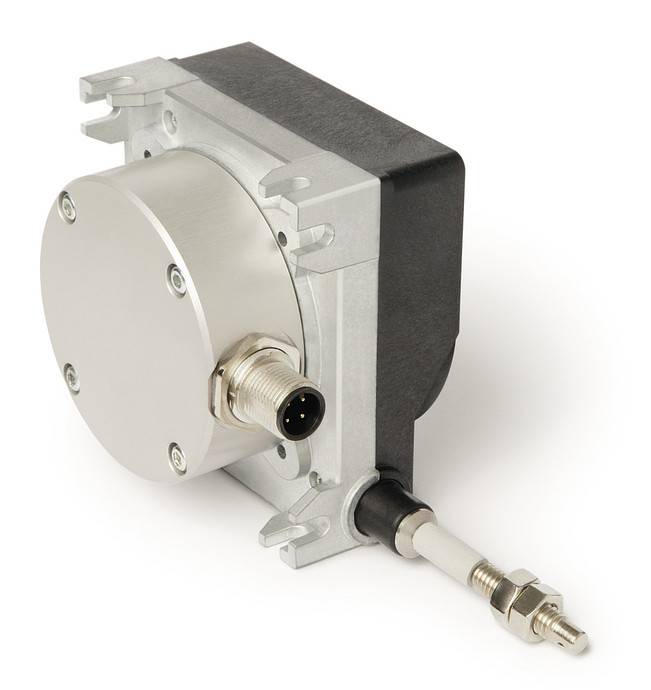

SIKO SG30

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Compact
  • Robust design
  • Variable mounting options
  • Measuring lengths up to 3000 mm
  • Potentiometer, voltage or power output
  • Housing made of zinc die-cast and plastic
  • Lockable ventilation holes against condensation
  • High tightness at the rope outlet M12 plug connection
Not sure this is the right model? Read the linear position measurement selection guide →

Description

SIKO : Very robust wire-actuated Draw-Wire Encoder SG30 in compact design with a measuring length up to 3000 mm for numerous applications including crane construction, stage construction, warehousing technology, etc.

Technical Specifications

Mechanical

MATERIAL PROPERTIESzinc die casting, plastic
Protection categoryIP65
Mounting categoryExternal mounting
Measuring length from 0 to ... mm3000 mm

Electrical

Working temperature-40 … 80 °C
Interfacespotentiometer, current output, voltage output

Applications

  • Crane and hoist position measurement up to 3000 mm
  • Stage and theatre machinery position sensing
  • Warehouse lift and storage system positioning
  • Outdoor installations down to -40 C
