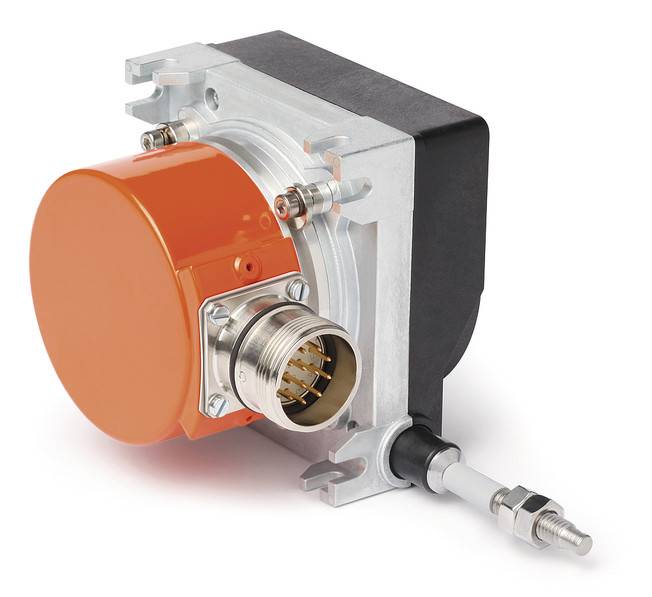

SIKO SG31
Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.
- Robust design
- Measuring lengths up to 3000 mm
- Wire-actuated encoder for rotary encoder with 58 mm servo-flange
- Variable mounting options
- Lockable ventilation holes against condensation
- Very robust measuring rope (stainless steel)
- High tightness at the rope outlet Also available as a safety version in combination with WV58MR rotary encoder
Description
SIKO : Very robust wire-actuated encoder in compact design with a measuring length up to 3000 mm for numerous applications including crane construction, stage construction, warehousing technology, etc. Furthermore, the wire-actuated encoder can also be used in safety-critical applications up to Performance Level Pld for easy parameterization.
Technical Specifications
Mechanical
| MATERIAL PROPERTIES | zinc die casting, plastic |
| Mounting category | External mounting |
| Measuring length from 0 to ... mm | 3000 mm |
Electrical
| Working temperature | -40 … 80 °C |
| Interfaces |
|
Applications
- Linear position from a 58 mm flange rotary encoder up to 3000 mm
- Safety-related position feedback on cranes and lifting equipment
- Fieldbus or Ethernet position data on warehouse systems
- Stage machinery and lifting platform positioning
