SIKO SGH25

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Measuring range 0 … 2500 mm (98.42 inches)
  • Absolute measuring system
  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
  • High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
  • Redundant interfaces (CAT3) available
  • Safety version usable up to Performace Level d
  • Analog, CANopen, SAE J1939, CANopen Safety interfaces
Not sure this is the right model? Read the linear position measurement selection guide →

Description

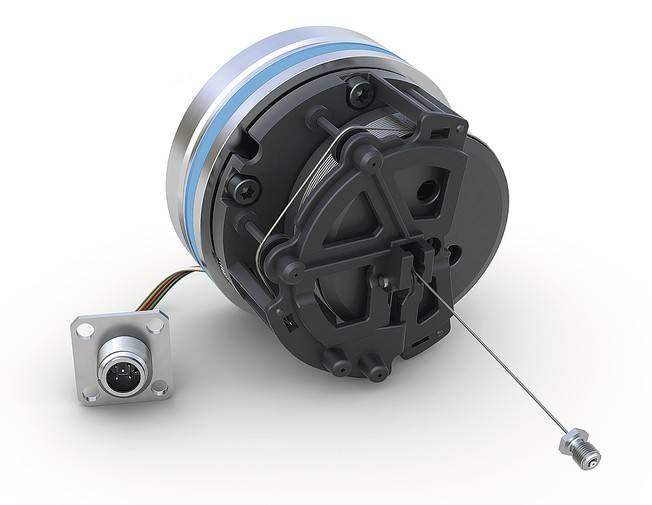

Siko Draw-Wire Encoder SGH25 Position sensor for hydraulic cylinders with measuring lengths up to 2500 mm.Absolute wire-actuated sensor for position measurement and speed measurement in hydraulic cylinders, telescopic cylinders, and piston accumulators. Durable, reliable, and easy to integrate, based on over 30 years of experience in wire-actuated sensor technology. Profile SGH25:

Technical Specifications

Mechanical

MATERIAL PROPERTIESsynthetic
Protection categoryIP6K9K
Mounting categoryInternal mounting
Measuring length from 0 to ... mm0 … 2500 mm

Electrical

Working temperature-40 … 105 °C
Interfaces
  • Analog
  • CANopen
  • SAE J1939
  • CANopen
Operating voltage9 ... 32 VDC
Current consumption<32 mA

Applications

  • Stroke measurement inside hydraulic cylinders up to 2500 mm
  • Telescopic cylinder position on cranes and tippers
  • Piston position monitoring inside hydraulic accumulators
  • Safety-rated cylinder position using redundant interfaces
  • Hydraulic press stroke feedback in forging plants
