SIKO SGH50

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Measuring range 0 … 5000 mm (196.85 inches)
  • Absolute measuring system
  • Pressure-resistant up to 350 bar, pressure peaks up to 450 bar
  • High degree of flexibility, adjustable to all measuring lengths thanks to teach-in
  • Redundant interfaces (CAT3) available
  • Safety version usable up to Performace Level d
  • Analog, CANopen, SAE J1939, CANopen Safety interfaces
  • With PURE.MOBILE technology
Not sure this is the right model? Read the linear position measurement selection guide →

Description

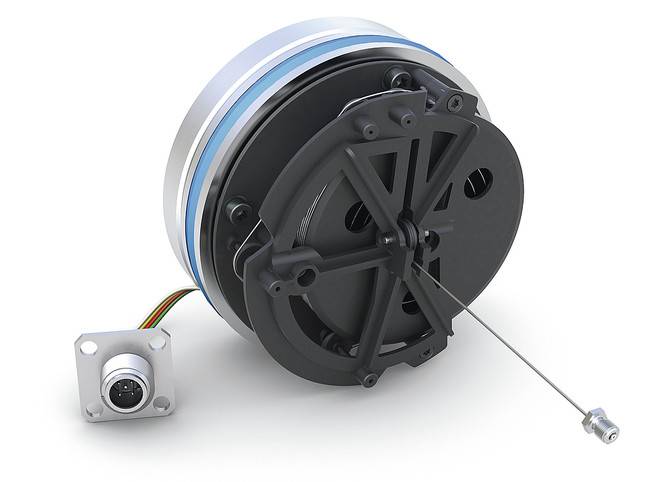

Siko Draw-Wire Encoder SGH50 Position sensor for hydraulic cylinders with measuring lengths up to 5000 mm.Absolute position sensor for hydraulic cylinders, telescopic cylinders, and piston accumulators, based on the tried and tested wire-actuated sensor technology. Durable, reliable, and robust. Developed with the know-how of over 30 years of experience in wire-actuated sensor technology.

Technical Specifications

Mechanical

MATERIAL PROPERTIESsynthetic
Protection categoryIP6K9K
Mounting categoryInternal mounting
Measuring length from 0 to ... mm0 … 5000 mm

Electrical

Working temperature-40 … 105 °C
Interfaces
  • Analog
  • CANopen
  • SAE J1939
  • CANopen
Operating voltage9 ... 32 VDC
Current consumption<32 mA

Applications

  • Long-stroke hydraulic cylinder measurement up to 5000 mm
  • Telescopic cylinder position on mobile cranes
  • Position feedback on large hydraulic presses
  • Gate and lock cylinder position in water infrastructure
  • Safety-rated position with redundant CAT3 interfaces
