SGP/1
SIKO

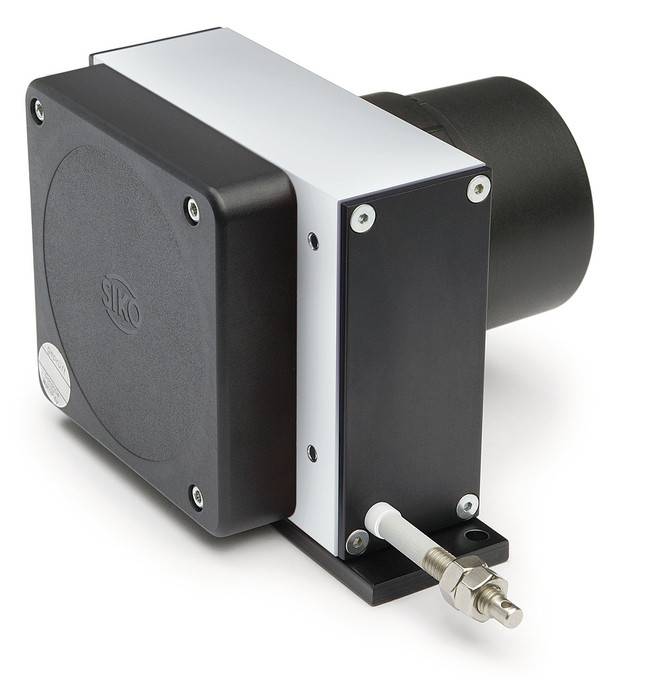

SIKO SGP/1

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • Robust design
  • Measurement lengths up to max. 6000 mm
  • Potentiometer, voltage or power output
  • Housing made of aluminum and plastic
  • Potentiometer/resistance range adapted to actual measurement length via an integrated gear Various wire types
Not sure this is the right model? Read the linear position measurement selection guide →

Description

SIKO : Robust Draw-Wire Encoder SGP/1, Wire-actuated encoder with analog output, potentiometric, current source or voltage output with a measuring length of up to 6000 mm. Easy adjustment of the output signal to the actual measuring length via an integrated gear mechanism.

Technical Specifications

Mechanical

MATERIAL PROPERTIESaluminum, plastic
Protection categoryIP65
Mounting categoryExternal mounting
Measuring length from 0 to ... mm6000 mm

Electrical

Working temperature10 … 80 °C T1 -40 … 80 °C T2
Interfacespotentiometer, current output, voltage output

Applications

  • Long-stroke measurement up to 6000 mm on large machines
  • Lift and elevator platform position sensing
  • Gate, sluice and dam position monitoring
  • Position feedback on heavy presses and handling equipment
