Description

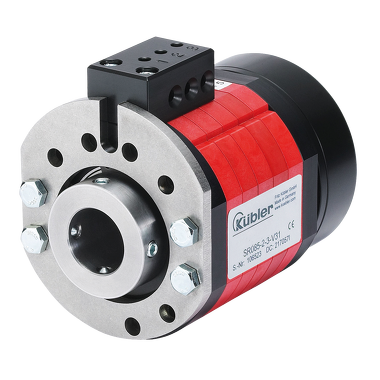

Kuebler : Slip rings are generally used to transmit electrical currents, signals or data, pneumatics, and hydraulics from a stationary to a rotating platform. Transmission between the stator and rotor units is extremely reliable using sliding contacts. The design is modular and offers maximum flexibility in a wide range of applications.
Technical Specifications
Mechanical
| Dimension | 85 mm |
| Mounting type | 20 mm Hollow shaft, through 24 mm Hollow shaft, through 25 mm Hollow shaft, through 30 mm Hollow shaft, through |
| Working temperature | -35 °C ... +80 °C |
| Protection level | IP64 |
| Rotational speed | 800 min-1 |
| Service life | 500 million revolutions |
| Maintenance cycles | 100 million revolutions |
Electrical
| Load current transmission |
|
Applications
- Transmitting power and signals to rotary indexing tables on assembly lines
- Passing pneumatic and hydraulic media to rotating units through the slip ring
- Feeding sensors and actuators on rotating heads of packaging machines
- Power and signal transfer on rotary welding fixtures in auto component plants
- Supplying rotating platforms in bottling and filling carousels
