SZ80/1
SIKO

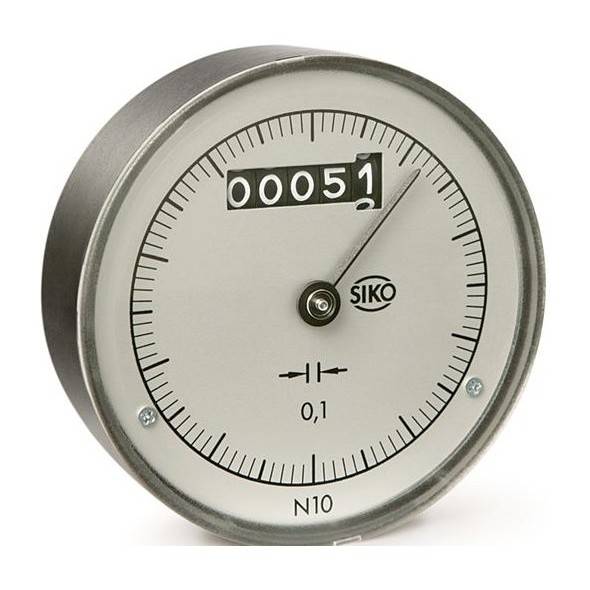

SIKO SZ80/1

Genuine SIKO product, supplied in India by Rajdeep Automation, the authorised SIKO distributor.

  • analog position indicator
  • Measured value acquisition based on the gravity principle
  • High stability thanks to doubly supported pointer shaft
  • Very robust, glass-fiber reinforced plastic housing
  • Wide range of gear ratios
  • Special scales, also for small numbers of pieces
  • Dustproof, oil-filled or waterproof versions
Weight
  • 0.2 kg (N
  • W design)
Housingreinforced plastic
Weight
  • 0.2 kg
  • 0.3kg
Housing Materialreinforced plastic
temperature range-10 °C to +60 °C
MATERIAL PROPERTIESZinc-coated steel or stainless steel
Not sure this is the right model? Read the position indicators selection guide →

Description

The SIKO SZ80/1 is a mechanical position indicator with a 6-digit counter and axial shaft input. It is designed to be mounted with the shaft entering from the back (axial input) and displays precise rotary position values without requiring electrical power, ideal for format adjustments in industrial machinery.

Applications

  • Position indication on manually adjusted spindles
  • Format adjustments on packaging and labelling machines
  • Setting readouts on woodworking and converting machines
  • Power-free display of adjustment positions on format axes
