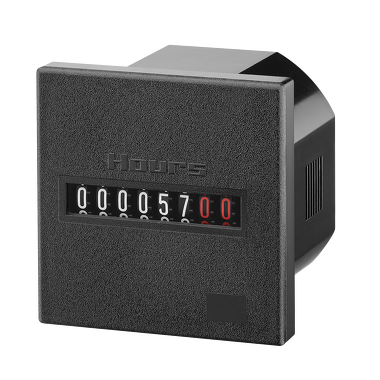

Totalizer

High shock resistance
High protection, IP65
No zero position
Display 7-digit number, mech. roller counter
No zero position
Display 8-digit number, mech. roller counter.

Description

Kuebler : The H 37 hour meters have a very high shock resistance. As built-in meters with standard DIN dimensions, they can be used for a wide range of applications. These non-resettable counters are extremely tamper-proof.The H 57,H 57.55,H 57.72 and AH 57 hour meters have a very high shock resistance.They can be used in various application areas as built-in / surface-mounted meters with a small installation depth. These non-resettable counters are extremely tamper-proof.

Technical Specifications

Mechanical

Weight	approx. 48 g , approx. 50 g
Dimension	48 x 24 mm \| 45 x 22 mm 53 x 28 mm \| 50 x 25 mm 56 x 40 mm \| 50 x 25 mm 48 x 48 mm \| 45 x 45 mm 55 x 55 mm \| 50 x 50 mm 72 x 72 mm ,Ø 72 mm
temperature range	-15 °C ... +50 °C
Protection category	IP65 IP52

Electrical

Operating voltage	20...30 V AC 42...48 V AC 187...264 V AC 10...30 V DC 36...80 V DC 100...130 V DC.
Current consumption	10 ... 30 V DC approx. 500 mW 36 ... 80 V DC approx. 900 mW 100 ... 130 V DC approx. 750 mW 20 ... 30 V AC 50 Hz approx. 0.3 VA 42 ... 48 V AC 50 Hz approx. 0.25 VA 100 ... 130 V AC 50 Hz approx. 0.6 VA 187 ... 264 V AC 50 Hz approx. 1.2 VA,
